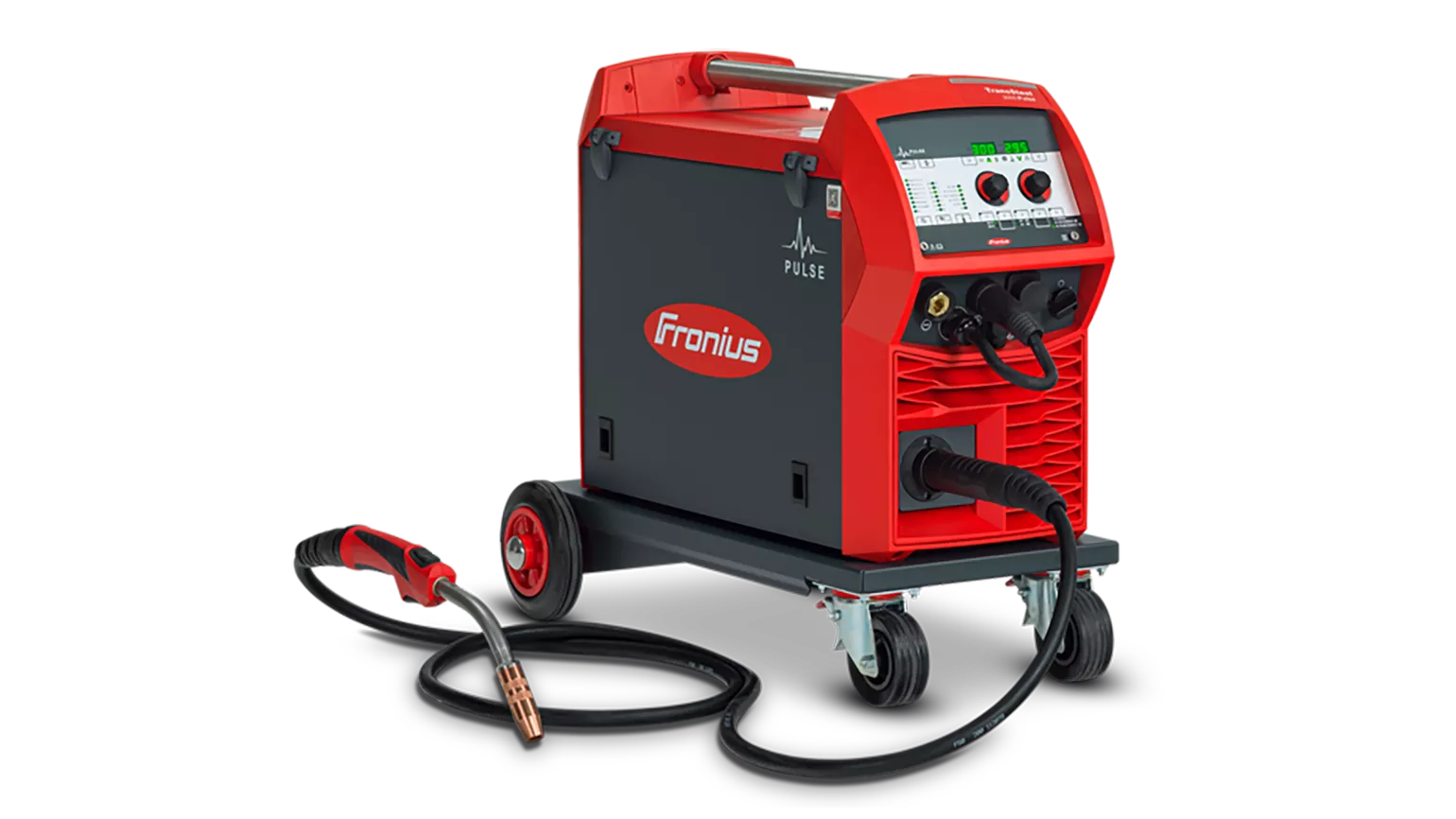

TransSteel 3000 C PULSE

No matter what the welding task - MIG/MAG, TIG and electrode welding with just one device.

Whether a construction site or a workshop, from agricultural enterprises to metalworking companies – for assembly, repair, and maintenance work, the TransSteel Multiprocess series masters the MIG/MAG, TIG, and electrode welding processes to professional levels.

Please choose your desired product.

Product details

Technical Data

GENERAL DATA

Mains voltage	380 / 400V
Mains voltage tolerance	-10 / +15%
Welding current min.	10 A
Welding current max.	300 A
Welding current / Duty cycle [10min/40°C]	300A / 40%
Welding current / Duty cycle [10min/40°C]	280A / 60%
Welding current / Duty cycle [10min/40°C]	240A / 100%
Operating voltage min.	14,5 V
Open-circuit voltage	59 V
Degree of protection	IP23
Length	747 mm
Width	300 mm
Height	497 mm
Weight	34,64 kg
Weight	34,64 kg
Interference emission class	A

TECHNICAL DATA

Power Factor (pf)	0,99

Contact

Would you like to find out more about the product?

Send us a message

Find contacts worldwide

Interactive Operating Instruction

Clear, digital and mobile optimized for every device

Show all downloads for product

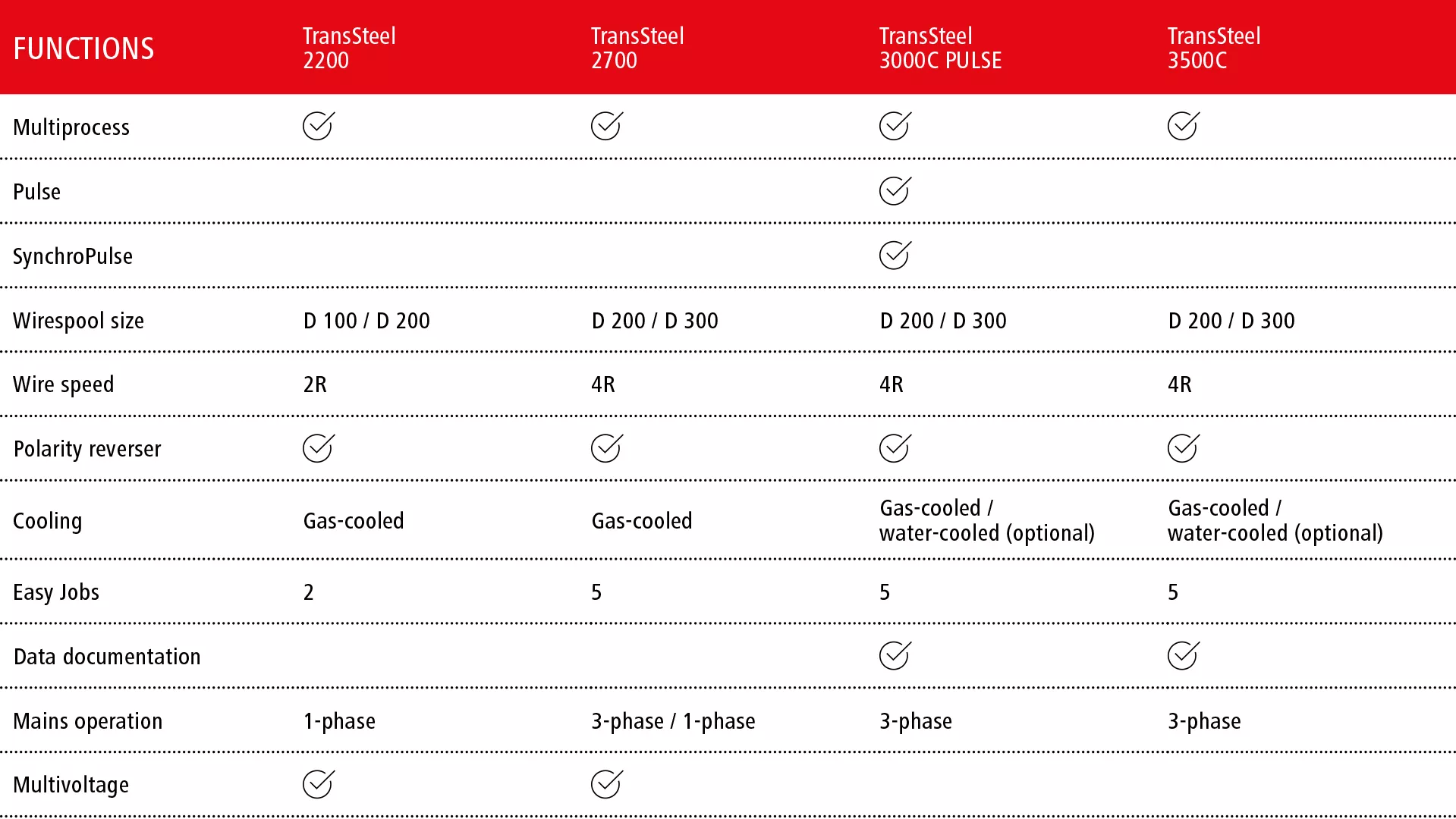

The TransSteel multiprocess series

Warranty activation

Activate your warranty for free and without obligation

Video: TransSteel Pulse

No compromises. TransSteel Multiprocess.

One device - for all manual welding applications

Combining MIG/MAG, TIG, and electrode welding in one device means you no longer have to purchase any other power sources. There is absolutely no difference in the welding performance of the respective process compared with a dedicated device.

118 characteristics*

/ Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, self-shielded wires

/ 0.8 – 1.2 mm wire diameter

/ Eight different gas mixtures

Ready to weld in three steps

The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.

70% less rework, 30% faster welding

The Pulse function of the TransSteel 3000C permits faster welding speeds on thicker materials. The pulsed arc also reduces the amount of rework, as less welding spatter is generated.

* Maximum number of characteristics (TransSteel 3000 C Pulse), will vary depending on the version.

The MIG/MAG welding functions

Pulse
Welding controlled and fast

The new TransSteel 3000C Pulse marks the arrival of the pulsed arc in the TransSteel series. The setting is simply selected from the main menu and facilitates controlled welding in the intermediate arc range.

Spot and Stitch
welding with no material distortion

Spot mode enables you to place welding spots at regular intervals. As you have complete flexibility over the pause time between the intervals, spot welding is ideal for the tacking of workpieces. Stitch welding not only produces a rippled seam appearance, the low level of heat input reduces any possible material distortion when working with light gage sheets.

Special 4-step
mode for a more stable arc

The “Special 4-step mode” is particularly suitable for welding in the higher power range. In special 4-step mode, welding starts at a lower power, which makes the arc easier to stabilize.

SynchroPulse
Seam rippling for aluminum alloys

The “SynchroPulse” option is recommended for the welding of aluminum alloys when a rippled seam appearance is required. This effect is achieved by modifying the welding power between two operating points.

! SynchroPulse works in Standard Synergic and Pulse Synergic Mode – but only on the TransSteel 3000C Pulse

STEEL Transfer Technology

/ STEEL is the universal characteristic for quick and easy welding applications.

/ STEEL ROOT is the characteristic specifically developed for root pass welding. It is characterized by particularly strong gap-bridging ability, in other words, the ability to fill wide gaps.

/ STEEL DYNAMIC is a characteristic with a particularly hard and concentrated arc, resulting in high welding speeds and deep penetration.

/ PCS (Pulse Controlled Spray Arc) characteristics* facilitate a combination of intermediate and spray arcs – the result is deep penetration with minimal spattering.

* TransSteel 3000C Pulse

Corrections during welding

The arc length correction and arc-force dynamic welding parameters can be used to optimize the welding result.

Arc length correction
to change the arc characteristic

– shorter arc, reduced welding voltage
o neutral arc
+ longer arc, increased welding voltage

Arc-force dynamic
for influencing the short-circuiting dynamic at the instant of droplet transfer

– hard, stable arc
o neutral arc
+ soft, low-spatter arc

Pulse correction
for correcting the pulse energy of pulsed arc

– Slower droplet detachment force
o neutral droplet detachment force
+ higher droplet detachment force

The TIG welding functions

TIG
Pulse welding

Pulse welding is primarily used for out-of-position welding or when welding especially thin materials. The pulse setting range is from 1 Hz to 990 Hz.

TAC
Tacking function

The weld pool is made to oscillate by means of pulse currents. This makes it easier to tack components together and reduces the tacking time. The pulsed arc facilitates the process with very thin materials, since the temperatures are slightly lower in the phases with less current.

Time saving of up to 50% for the usercompared to conventional tacking
Fast tacking points without burning off the edges
Minimal temper coloration at the tacking points
Spot function

Touchdown ignition

The highly accurate touchdown ignition is on a par with high frequency ignition and contributes towards user-friendliness.

Gas pre-flow time + Gas post-flow

TransSteel automatically calculates the duration of the optimal gas post-flow time according to the set welding current. This improves the gas shield of the weld seam end and tungsten electrode.

The MMA welding functions

Anti-stick function
prevents sticking of the electrode

If a short circuit occurs (electrode sticking during electrode welding), the welding process is switched off immediately. This prevents electrode burn-out and/or serious weld seam faults.

Hot start function
when igniting the arc

In order to make the electrode easier to ignite, the current is increased for a split second during ignition on the power source.

Arc-force dynamic
Seam rippling for aluminum alloys

If basic electrodes are welded with coarse droplet material transfer at a low current (underloaded), there is a risk of sticking. To rule this out, more current is supplied for fractions of a second just before sticking. The electrode burns free, preventing sticking.

USB thumb drive export function

A USB thumb drive can be connected to the rear of the device (the stick is included as part of the scope of supply with the Easy Documentation option). The drive can then be used to export a CSV file containing welding data.

Easy Documentation recording of welding parameters

Easy Documentation records the following welding parameters:

/ Power source ID// Firmware version
/ Serial number// Process (Manual, Standard, Pulse, TIG, MMA)
/ Current / voltage / wire speed in the main process phase
/ Power from instantaneous values “IP” (Instantaneous Power) - energy / time (in the main process phase)
/ Energy from instantaneous values “IE” (Instantaneous Energy) over the entire welding operation
/ Motor current (in the main process phase)
/ Time stamp hh:mm:ss when current starts to flow
/ Counter
/ Welding duration
/ Error no. when welding is terminated
/ Wire speed (metric and imperial)
/ Characteristic number
/ Operating mode (2T, S2T, 4T, S4T, spot welding, stitch welding, SynchroPulse)
/ Signature for each weld seam number
/ Template for .csv file
/ Easy Job number

* TransSteel 3000C Pulse and TransSteel 3500C only

Welding torch with additional functions configurable

Multilock

The patented interface

The patented Multilock interface allows you to configure the MIG/MAG welding torch* according to the task in hand. The wide choice of torch bodies in terms of their lengths and angles enables even difficult to access parts to be welded without any problem. In case of doubt, the best alternative is a flexible torch body.

* Standard and Up/Down welding torches.

TIG Multi-Connector

Additional functions for multiprocess

The TransSteel is a genuine multiprocess power source, so also offers a connection for TIG welding torches with additional functions – the TIG Multi Connector (TMC). This enables Up/Down welding torches to be used for TIG welding as well.

FSC

Fronius System Connector

The Fronius System Connector (FSC) is the central connector for all media and enables a variety of different welding torches to be connected.
